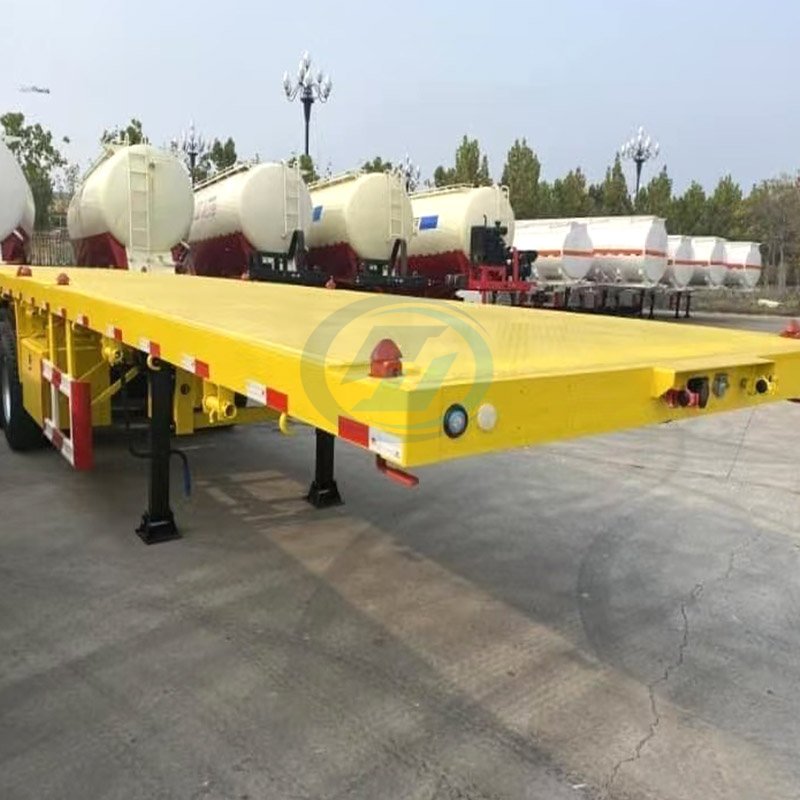

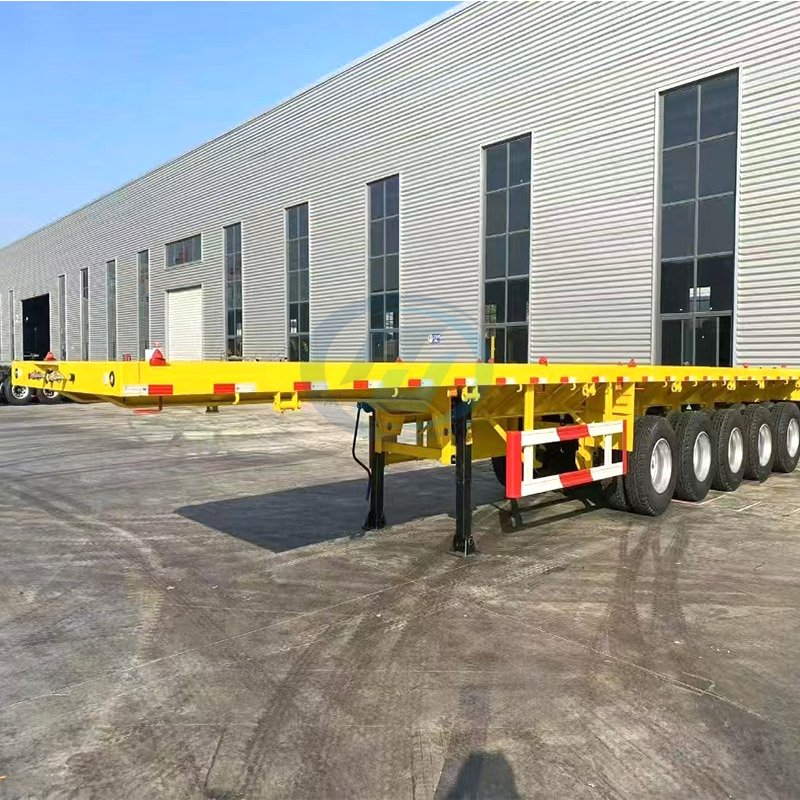

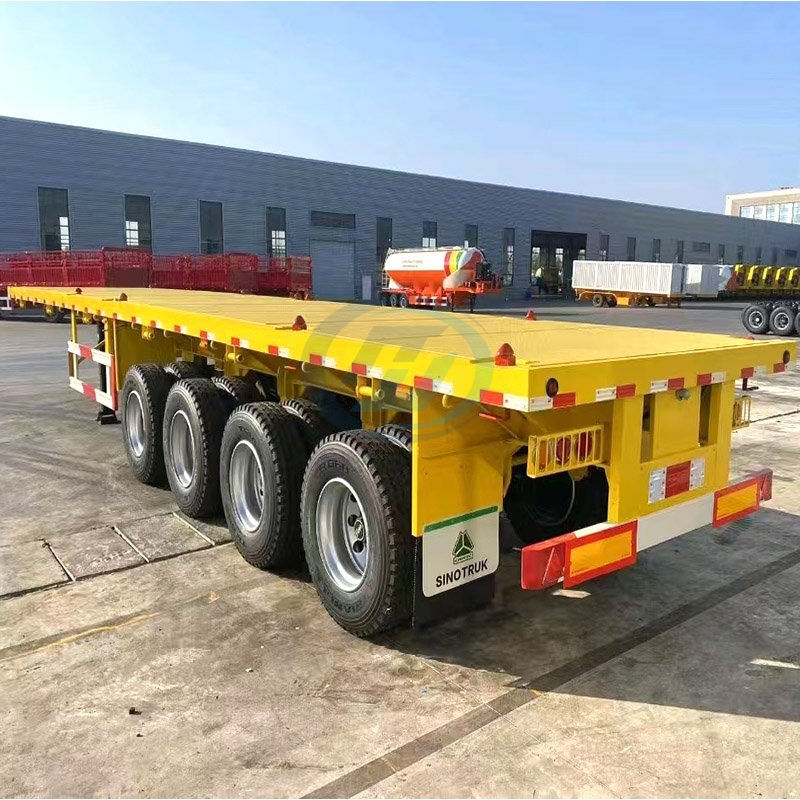

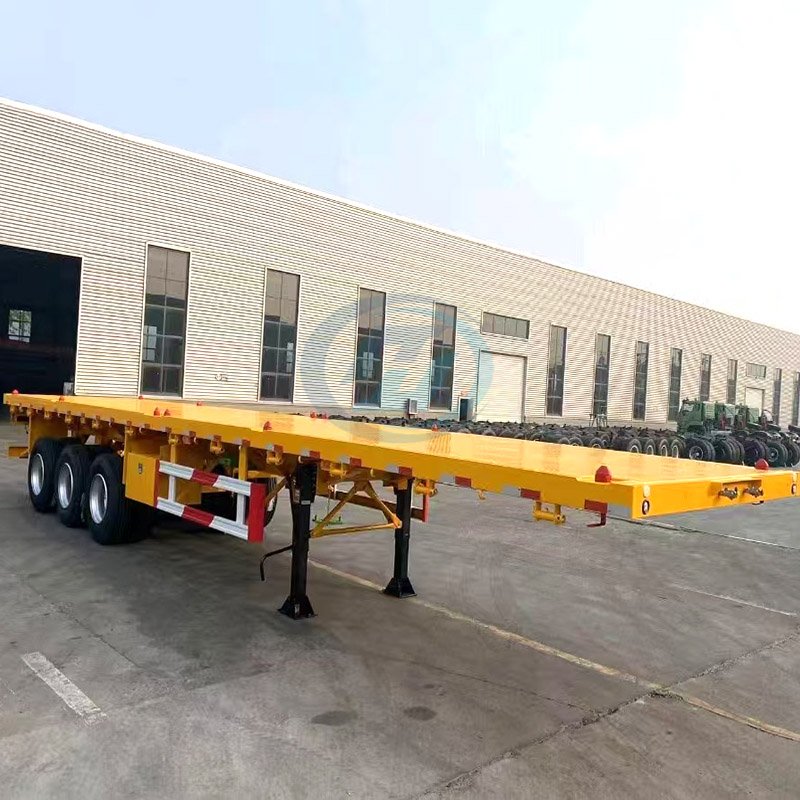

Semirremolque de transporte de contenedores con ejes

Type

3-5 axles container transportation semitrailer

Parameter

dimension(mm)

length×width×height:12500×2500×1610mm

king pin setting(mm)

According to the design

fifth wheel height(mm)

wheelbase(mm)

According to the design

tare weight（kg）

6,200

payload （kg）

50,000

Fabric

main beam(mm)

500，submerged arc welding

flange and web(mm)

 14/8/16

Lock

12

Paint

primer + top coat

OEM

landing gear

JOST

Kingpin

90# exchangeable

brake system

30/30 type on each axle

ABS

No

Suspension

mechanical suspension with 10 leaf spring.

Axle

FUWA 13Tx3

Tire

315/80R22.5*8

Rim

Equip 8 per chassis.

tool box

steel box,on right,stainless steel lock

spare tire carrier

2 units per chassis 2个

Mud guard

/

Color

Others

Marking: “LONG VEHICLE” sign on the rear end.LED lights,equip side turn light.
